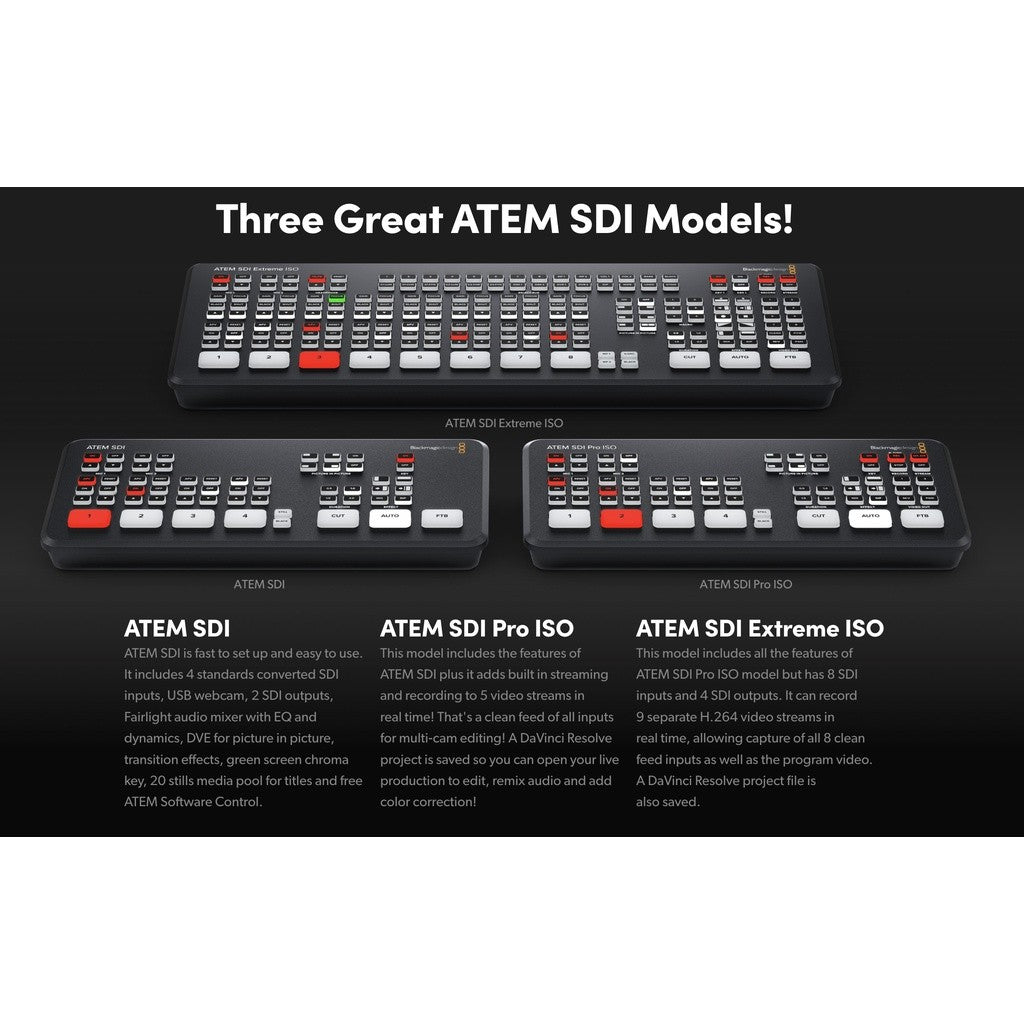

Atem SDI Extreme ISO
This model includes all the features of ATEM SDI Pro ISO model but has 8 SDI inputs and 4 SDI outputs. It can record 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved.
Features:-
Total Video Inputs
8
Total Outputs
6
Total Aux Outputs
4
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Total Audio Outputs
1 x 3.5mm stereo mini jack.
Timecode Connection
None
SDI Video Inputs
8 x 3G-SDI, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync
On all 8 SDI inputs.
Frame Rate and Format Converters
On all 8 SDI inputs.
SDI Program Outputs
4
Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

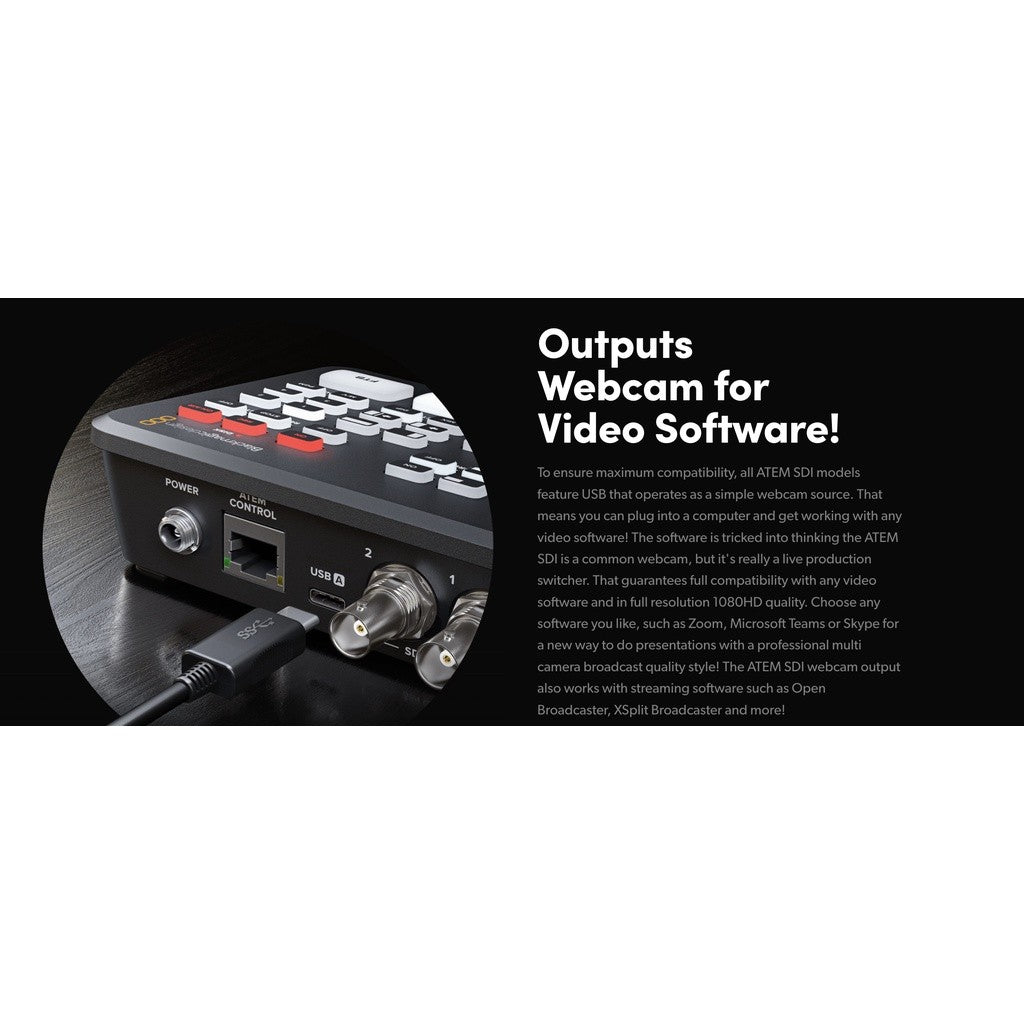

Computer Interface
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Atem SDI Pro ISO
This model includes the features of ATEM SDI plus it adds built in streaming and recording to 5 video streams in real time! That's a clean feed of all inputs for multi‑cam editing! A DaVinci Resolve project is saved so you can open your live production to edit, remix audio and add color correction!
Features:-
Total Video Inputs
4
Total Outputs
3
Total Aux Outputs
2
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Total Audio Outputs
None, embedded audio only.
Timecode Connection
None
SDI Video Inputs
4 x 3G-SDI, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync
On all 4 SDI inputs.
Frame Rate and Format Converters
On all 4 SDI inputs.
SDI Program Outputs
2
Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Atem SDI
ATEM SDI is fast to set up and easy to use. It includes 4 standards converted SDI inputs, USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.
Features:
Total Video Inputs
4
Total Outputs
3
Total Aux Outputs
2
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Total Audio Outputs
None, embedded audio only.
Timecode Connection
None
SDI Video Inputs
4 x 3G-SDI, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync
On all 4 SDI inputs.
Frame Rate and Format Converters
On all 4 SDI inputs.
SDI Program Outputs
2
Ethernet
Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection.
Computer Interface
1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection.
